Machines and capabilities.

All of our programming and design work is done in Solidworks and Mastercam X.


Makino a61 nx 4 axis HMC

  • 28.7 Inches of travel in the X axis and 25.6 inches in the Y.

  • 14,000 RPM CAT40 direct drive spindle.

  • Accuracy to < .0002”

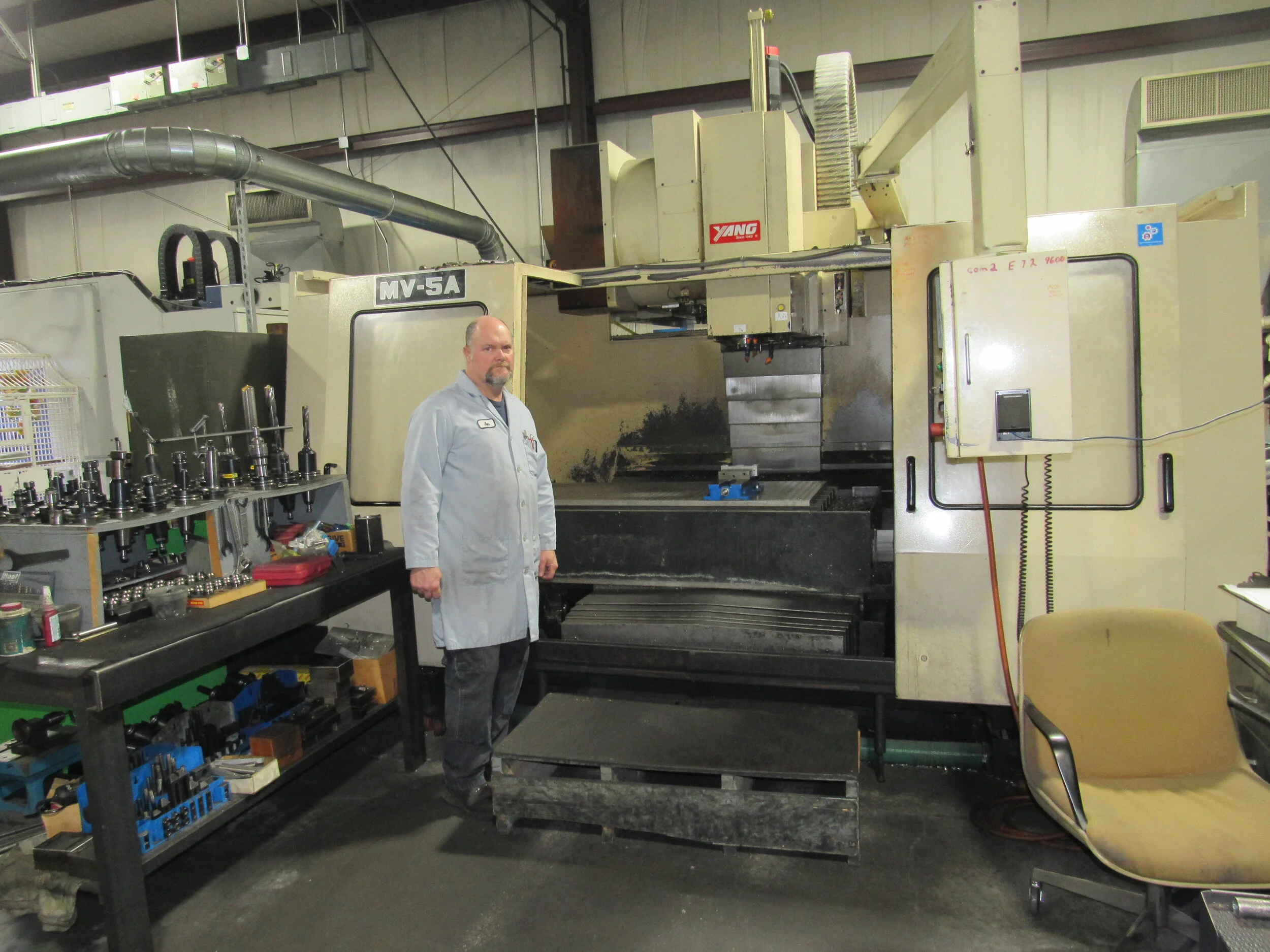

Yang MV5A 3 axis VMC

  • XYZ Travel of 51.5” x 30” x 30”.

  • 3500 RPM CAT50 Spindle.

  • Glass scales XYZ


Vibra-Free JS 3 axis VMC

  • XYZ Travel of 35” x 28”x 20”.

  • 24,000 RPM HSK63A Spindle.

  • Hooked up to a Donaldson Torit dust collector.


Charmilles Roboform 55 4 axis CNC sinker EDM

  • XYZ Travel of 23.62” x 17.71”x 15.74”.

  • Internal work tank dimensions 49.3”x31.3”x18.3”.

  • Up to 3500lbs capacity

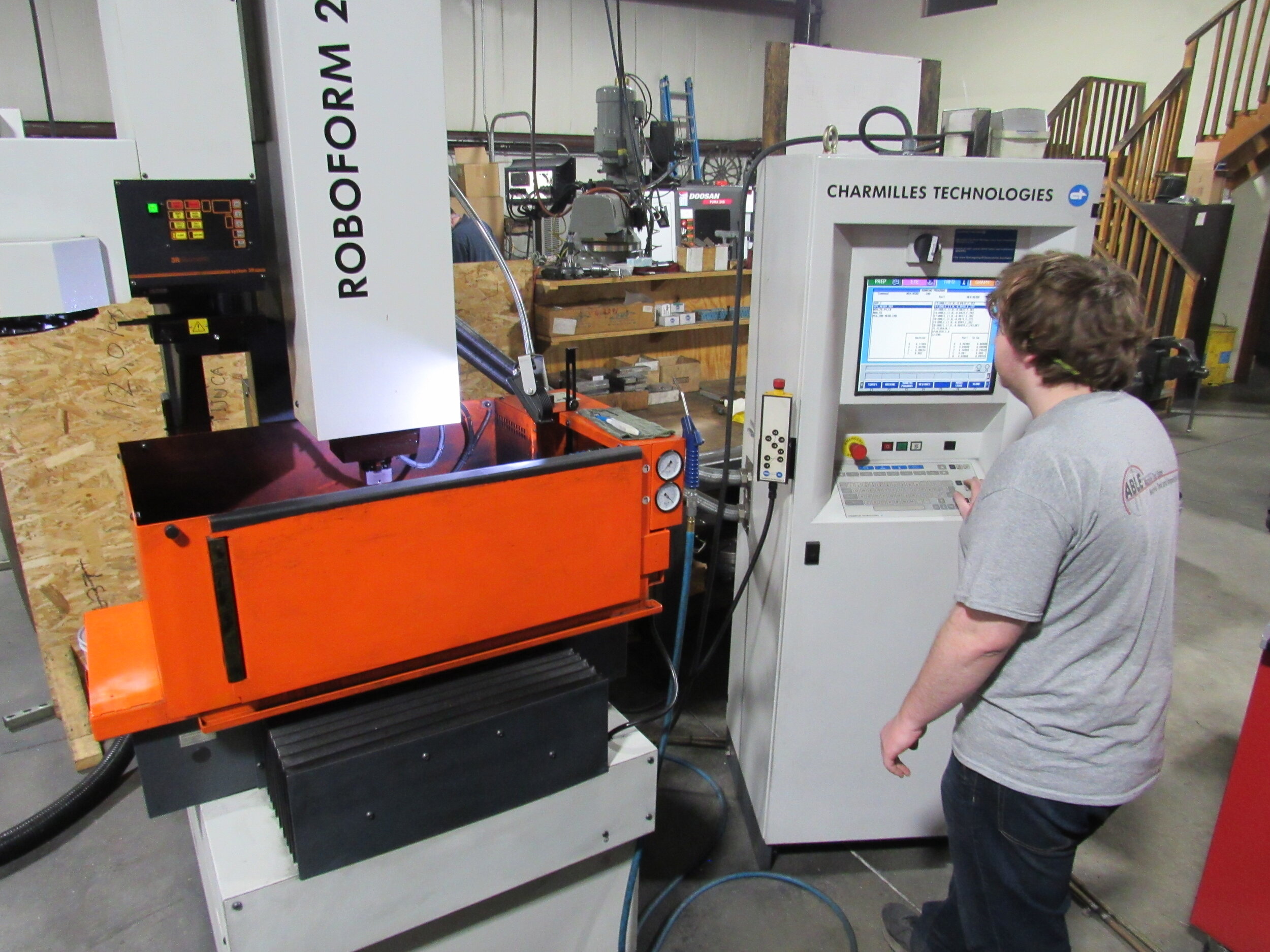

Charmilles Roboform 22 4 axis CNC sinker EDM

  • XYZ Travel of 11.87” x 9.87”x 10”.

  • Up to 500 lbs capacity

Agie/Charmilles Roboform 550s 4 axis CNC sinker EDM

  • XYZ Travel of 23.62” x 17.71”x 15.74”

  • Up to 3500 lbs capacity

  • 84 Tool magazine


Fanuc 1iB Wire EDM

  • XYZ Travel of 20.47” x 14.56”x 16.2”.

  • Up to 2200lbs capacity

  • Maximum taper angle 45°

  • Minimum wire diameter .004”


Doosan 240C CNC lathe

  • Up to 13.6” Diameter by 22” Length


JET Manual Lathe

  • Up to 16” Diameter by 40” Length


Surface Grinders

  • Four different surface grinders

  • Max travel of 16 x 32 in the Okamoto ACC16.32ST


Sharp knee mills

  • One manual and one with CNC capabilities


Sacem Boring Mill

  • XYZ Travel of 51.125” x 37.875”x 23.625”.

  • Up to 4409 lbs capacity
